high speed rotary filler for ground coffee milk powder spice
chemical powder 1g to 5000g filling
The equipment is redesigned according to market development needs,
combined with the practice on the basis of the development and
design, in line with national GMP standard the machine fusion
cincept of European packaging science and technology, the latest
technology, design more reasonable and concise and more solid
automatically feed tank filling, etc. Suitable for filling powder
and granule materials, such as solid drink grape, milk powder,
spices, etc.
Main features :
1, Lathing auger screw to guarantee the precise filling accuracy
2, PLC control and touch screen display
3, Servo motor drives screw to guarantee stable performance
4, Quick disconnecting hopper could be washed easily without tools
5, Can be setting to semi-auto filling by pedal switch or auto
filling
6, Full stainless steel 304 material
7, weight feedback and proportion track to materials, which
overcomes difficulties of filling weight changes due to materials’
density change.
8, Save 20 sets of formula inside the machine for later use
9, Replacing the auger parts, different products ranging from fine
powder to granule and different weight can be packed
10, Multi language interface
Detail Part :
Level split hopper Disconnect hopper
It is very easy to open hopper and it is not easy it is not easy to
take hopper apart
to take hopper apart do cleaning. and do cleaning. and do cleaning.
The way to fix the auger screw
Screw type hang type Hang type
It will not make material stock, and easy it will make material
stock, and not easy for cleaning
for cleaning. become rust, not easy for cleaning.
Air outlet
Stainless steel type cloth type
It is easy for cleaning and beautiful. it has to change termly for
cleaning.

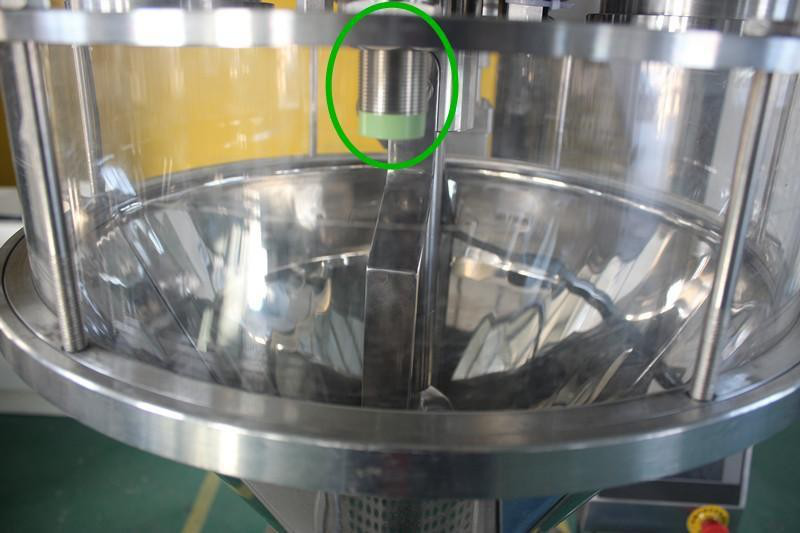

Level sensor (Autonics brand ) Handwheels
It can give singals to loader ,when materia it is suitable for
filling into bags /bottles with different
level is low , it does feeding automatically . height .
Leakproof acentric device
It is suitable for filling products with very good fluidity, such
as, salt, white sugar etc.
Auger screw and tube
In order to make sure filling accuracy, one size screw is suitable
for one weight range, for example, dia. 38mm screw is suitable for
filling 100g-250g.
Specifications:
| Model | TP-PF-A31 | TP-PF-A32 |
| Container size | Φ20~100mm,H15~150mm | Φ30~160mm,H50~260mm |
| Packaging weight | 1-500g | 10-5000g |
| Filling speed | 20~50 bottles/min | 20~40 bottles/min |
| Filling accuracy | ≤100g ≤±2% ,100~500g ≤1% | ≥500g,≤±0.5% |
| Power supply | 3P AC208-415V 50/60HZ | 3P AC208-415V 50/60HZ |
| Air supply | 6kg/cm³ 0.05m³/min | 6kg/cm³ 0.05m³/min |
| Total power | 1.8KW | 2.3KW |
| Total weight | 250kg | 350kg |
| Over demension | 1400*830*2080mm | 1840*1070*2420mm |
| Hopper volume | 35L | 50L(enlarged size 70L) |
