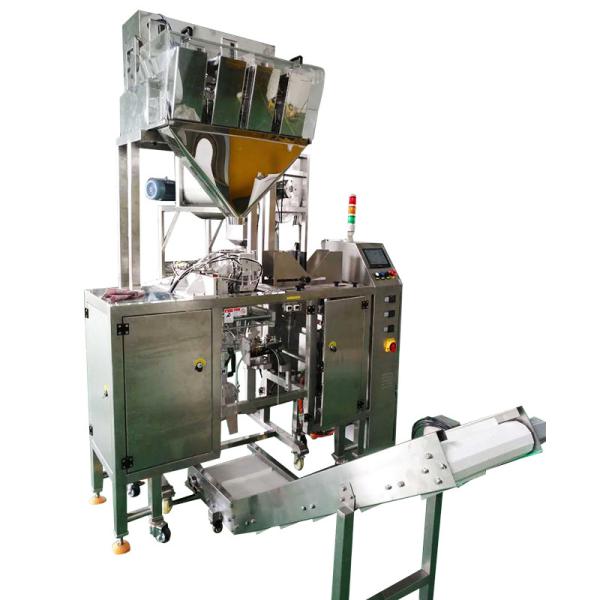

SUS304 Automatic Granular Mini Doypack Packing Machine for Pouches
Standard Features
• Heat sealable premade flat pouch dosing and sealing
• PLC & HMI Control , Easy for parameter setting and
troubleshooting
• Different pouch size adaption, simple adjustment without tools
• Intelligent temperature controlling configuration, ensure the
artistic and neat sealing.
• Pouch saving design, no completely opened pouch, no filling and
sealing.
• Compatible Programs of powder, granule or liquid dosing, plug and
play, easy for different products switching
• Machine stopping interlock with door opening
Optional Features
• Pouch zipper opening function
• Gusset pouch opening function
• Vibrating product dosing function which apply for product without
good fluidity
• Vibrating compacting function which enhance packaging density
• Air/Nitrogen Inflating, Air deflating function
• De-dusting device to enable clean packaging environment and
ensure quality of sealing
• Different types of code printing function
Standard: Stainless Steel 304 Frame
Working Range:
Bag Width: 120mm ≤ Width ≤ 300mm;
Bag Length: 120mm ≤ Width ≤ 400mm;
Max Speed: 16 BPM (without zipper opener device)
Max Speed: 10 BPM (with zipper opener device)
Power:220V/50HZ Single Phase 5 Amps
Electronic:
Mitsubishi PLC
Omron PID Temperature Controller;
Delta 7 inches from Taiwan;
Pneumatic:
Pneumatics component Airtac from Taiwan;
Piab Vacuum Generator From Sweden;
Technical Feature:
* No bag No dump;
* Easy Adjustable;
* Low Operating & Maintenance cost;
* Multi Bag Format;
* InterLock, CE Application;
Mechanical:
Stainless Steel 304 Machine Frame with 3mm thickness Fabrication;
