High filling accuracy Semi Automatic Powder Filling Machine with automaticlly feeder

General Description :

This series packing machines can handle weighing,filling functions etc.Featured with real-time weighing and filling design these machine can be used to pack high accuracy required,with uneven density,free flowing or non free flowing powder or small granule.I.e. Protein powder,food additive,solid beverage,sugar,toner,veterinary and carbon powder etc.

Features :

1. Stainless steel structure;split hopper could be washed easily without tools.
2. Servo motor drive screw.
3. Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
4. PLC control, touch screen display, easy to operate.
5. Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
6. Save the parameter of different filling weight for different materials.To save 20 sets at most.
7. Replacing the auger parts,it is suitable for material from super thin powder to granule.

Specification :

Configuration List :

Detailed photos:

​A: split type hopper (simple to open the hopper and change different No. auger)

B: Leakproof acentric device (suitable for powder and small granules with good fludity)

C: Level sensor in the hopper (to control feeder automaticlly feeding)

D: High accuracy auger (hand polishing)

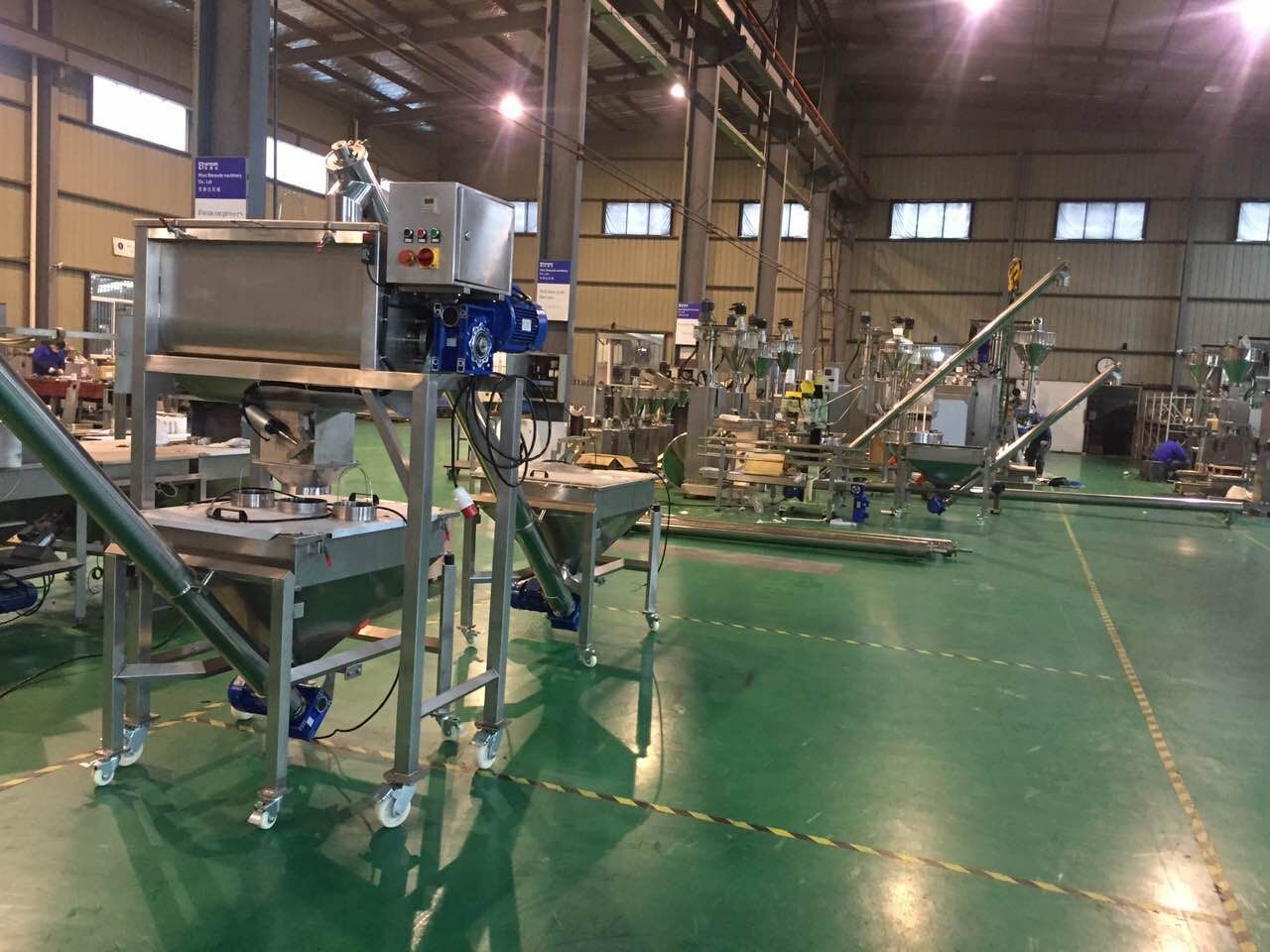

Packing line:

A: stairs+mixer+feeder+stotage bin+feeder+filler

B: Unscrambling turning table+filler with conveyor+feeder

Our factory :

Shanghai Tops Group Co.,Ltd, established in 2011, is a professional manufacturer engaged in the research, development, production, sale and service of powder packing machines. We are located in Shanghai city with convenient transportation access.

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including auger filling machine, ribbon mixer, automatic packing machine,etc. In addition, we have obtained several CE certificates for different machines.

Selling well in all cities and provinces around China, our products are also exported to more than 80 overseas countries. We also welcome OEM and ODM orders.

With the philosophy of Technology Orientation, Top Quality, Top Service, the company dedicates to establish an international enterprise with standard and sustainable operation capability, and turn Tops Group  into a No.1 powder packing machine in China, and finally a main brand enterprise in international powder packing machine industry.
